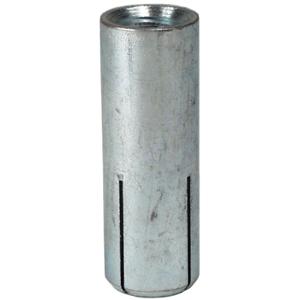

Drop-In Internally-Threaded Expansion Shell Anchor

Simpson Strong-Tie

(click image to enlarge)
SKU / Product InfoQuantity
DIA25
Carbon Steel
Rod Size (in.): 1/4"
DIA256SS
316 Stainless
Rod Size (in.): 1/4"
DIA25SS
303 Stainless
Rod Size (in.): 1/4"
DIA37
Carbon Steel
Rod Size (in.): 3/8"
DIA376SS
316 Stainless
Rod Size (in.): 3/8"
DIA37SS
303 Stainless
Rod Size (in.): 3/8"
DIA50
Carbon Steel
Rod Size (in.): 1/2"
DIA506SS
316 Stainless
Rod Size (in.): 1/2"
DIA50SS
303 Stainless
Rod Size (in.): 1/2"
DIA62
Carbon Steel
Rod Size (in.): 5/8"
DIA62SS
303 Stainless
Rod Size (in.): 5/8"
DIA75
Carbon Steel
Rod Size (in.): 3/4"
DIA75SS
303 Stainless
Rod Size (in.): 3/4"

Quick Overview

    Drop-in anchors are internally threaded drop-in expansion anchors for use in flush-mount applications in solid base materials.

    Features:
  • Lip at the top of the anchor body keeps the top of the anchor flush with the concrete
  • Available in coil-threaded versions for ½" and ¾" coil-threaded rod
  • Eliminates the need for precisely drilled hole depths and enables an easier flush installation, consistent embedment and uniform rod lengths
  • Minimum thread engagement should be equal to the nominal diameter of the threaded insert

  • Material: Carbon and stainless steel (DIA37S available in zinc-plated, carbon steel only)

    Finish: Carbon steel: Zinc plated


    Codes:
  • City of L.A. RR24682;
  • Factory Mutual 3017082;
  • Underwriters Laboratories File Ex3605.
  • Meets requirements of Federal Specifications A-A-55614, Type I.
Interested in this item or want more information?
Monday - Friday, 6:30 am to 4:30 pm
Phone: 412-681-6673
Email: bconnelly@constructiontoolservice.com

Can't find what you want? Give us a call and we can help you find it.
Details

Drop-In Anchor Material Specifications

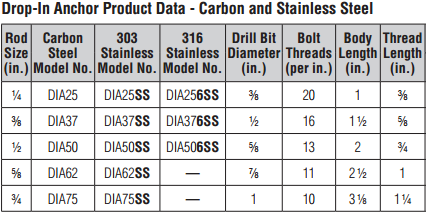

Drop-In Anchor Product Data
Additional Information
Manufacturer: Simpson Strong-Tie
For More Information on the Drop-In Internally-Threaded Expansion Shell Anchor, [Click Here] to Link to Manufacturer Web Site
