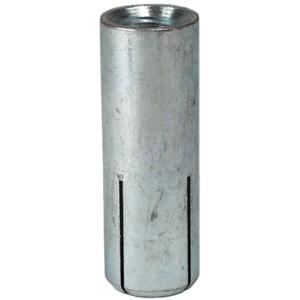

Drop-In Anchor

Simpson Strong-Tie

(click image to enlarge)
SKU / Product InfoQuantity
Size: 1/2"
Size: 3/4"
Size: 5/8"
Quick Overview
    Interested in this item or want more information?
    Monday - Friday, 6:30 am to 4:30 pm
    Phone: 412-681-6673
    Email: bconnelly@constructiontoolservice.com

    Can't find what you want? Give us a call and we can help you find it.
    Drop-in anchors are internally threaded, deformation-controlled expansion anchors with a preassembled expander plug, suitable for flush mount applications in solid base materials. The anchor is set by driving the expansion plug towards the bottom of the anchor using the setting tool. Drop-in anchors are also available in coilthreaded versions for 1/2" and 3/4" coil threaded rod.

    The Lipped Drop-In (DIAL) features a lip at the top of the anchor body that keeps the top of the anchor flush with the concrete. This eliminates the need for precisely drilled hole depths and allows for easier flush installation, consistent embedment and uniform rod lengths.

    Short Drop-In anchors are for use in solid and hollow concrete. The short length permits shallow embedment that helps to avoid drilling into rebar or prestressing strands. The wide surface flange enables the Short Drop-In to be installed in deep or bottomless holes. Fixed-depth drill bits are also available to take the guesswork out of drilling to the correct depth for these 3/8" and 1/2" Short Drop-Ins. Using the fixeddepth bit drill bit prevents overdrilling, which saves time and prolongs bit life.

    Additional Information
    Manufacturer: Simpson Strong-Tie
    For More Information on the Drop-In Anchor , [Click Here] to Link to Manufacturer Web Site
