N200248GO LG/BUN/NYL COT DI DIS GOP

NLJ391E

Nibco

  • Fig no: N200248
  • The NIBCO® wafer type butterfly valve provides in-line bubble-tight shutoff at 200 PSI, recommended for quick installation and removal from piping. The valve performs well in commercial applications including HV

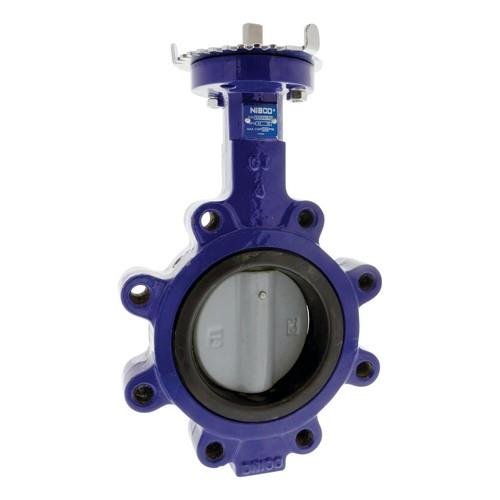

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Monday - Friday, 6:30 am to 4:30 pm
    Phone: 412-681-6673
    Email: orders@constructiontoolservice.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    • Type of Valve : Butterfly Valve
    • Valve End Connection Type : L - Lug
    • Features :
    • Valve pressure rating 200 psi
    • 225°F continuous and 250°F intermittent service
    • Buna-N cartridge seat liner
    • Nylon Bonded Ductile Iron Disc
    • Lug style
    • Stainless steel stem with bronze bushings
    • Extended neck
    • Operating mechanism: Bare stem, lever-lock operating system, manual gear operator
    • Not recommended for steam service
    • Designed to meet MSS SP-67
    • MSS SP-25 (markings)
    • Designed to meet API 609
    Additional Information
    Manufacturer: Nibco
    For More Information on the N200248GO LG/BUN/NYL COT DI DIS GOP, [Click Here] to Link to Manufacturer Web Site
