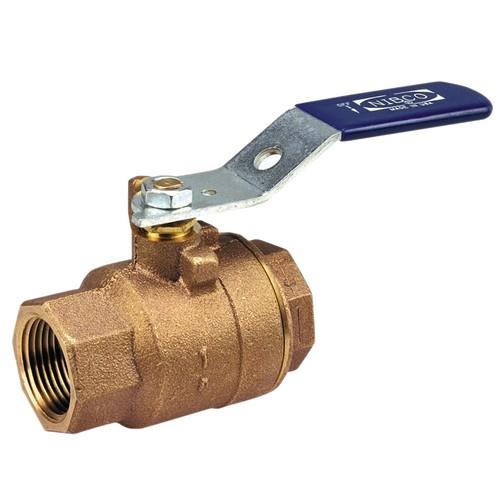

Fig no: T-585-70-SSHN
The NIBCO® bronze ball valve provides bubble-tight shutoff at 600 PSI. With the reinforced PTFE seat ring and brass hard chrome plated ball, the valve exhibits high chemical resistance properties. The two-piece valve is recommended for many high pressure applications, HVAC, hot and cold domestic water, Irrigation Water Shutoff, low pressure steam, compressed air, LP gas and natural gas.
The NIBCO® T-585-70-SSHN bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close, with Stainless Steel Handle and Handle Nut for added corrosion resistance. The two-piece valve features thread ends for easy installation. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.

(click image to enlarge)

Quick Overview

Interested in this item or want more information?
Monday - Friday, 6:30 am to 4:30 pm
Phone: 412-681-6673
Email: orders@constructiontoolservice.com

Can't find what you want? Give us a call and we can help you find it.

Details

Type of Valve : Ball Valve
Valve End Connection Type : T -- Female NPT Thread (FIPT)
Features :
Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
Maximum temperature rating 400°F
Full port
Chrome plated brass ball, silicon bronze stem
Blowout-proof stem
Stainless steel lever handle and handle nut
Threaded end connections
Dezincification resistant
Use in U.S. drinking water applications is prohibited after January 3, 2014
Conforms to MSS SP-110

Additional Information

Manufacturer: Nibco

For More Information on the T58570SSHN 1-1/4 W/SS HDLE & NUT, [Click Here] to Link to Manufacturer Web Site
