Unibody Carbon Steel Ball Valve - Class 300, Fire Safe

NG1140K

Nibco

  • Fig no: F-530-CS-R-66-FS
  • The NIBCO® carbon steel, flanged end ball valve provides bubble-tight shutoff at 740 PSI. The one-piece valve is recommended for industrial, petrochemical, utility service applications. It conforms to F

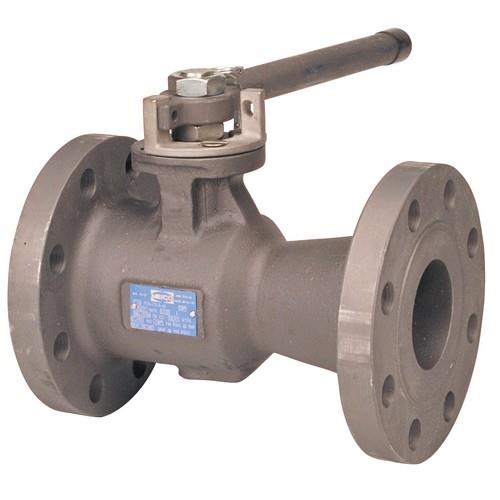

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Monday - Friday, 6:30 am to 4:30 pm
    Phone: 412-681-6673
    Email: orders@constructiontoolservice.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    • Type of Valve : Ball Valve
    • Valve End Connection Type : F -- Flanged
    • Features :
    • Valve pressure rating 740 psi 51 bar non-shock cold working pressure
    • Maximum temperature rating 400°F
    • Blowout-proof stem
    • Stainless steel ball and stem
    • Mounting pad
    • Vented ball
    • Locking handle or manual gear operator
    • Class 300 flanged end connections
    • Conforms to MSS SP-72
    • API-607 Fourth Edition Fire Safe
    • API-608 Anti-Static
    Additional Information
    Manufacturer: Nibco
    For More Information on the Unibody Carbon Steel Ball Valve - Class 300, Fire Safe, [Click Here] to Link to Manufacturer Web Site
