Seismic Wedge Anchors

Trubolt+ Overhead

Red Head

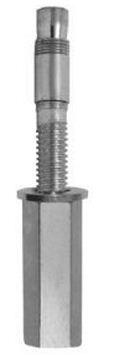

Overhead Seismic Wedge Anchors for Concrete Anchoring
(click image to enlarge)
Quick Overview
  • 2006 and 2009 International Building Code (IBC) Compliant.
  • Approved for Cracked Concrete/Seismic Applications in Concrete an Metal Deck.
  • Fast Installation — Drive Anchor Assembly and Torque Coupling Nut.
  • Overhead Anchor Assembly includes: Anchor, Coupling Nut and Washer — NO Additional Components Required.
  • High Performance Achieved Using Shallow Embedment.
  • ICC-ES-ESR-2427.
Interested in this item or want more information?
Monday - Friday, 6:30 am to 4:30 pm
Phone: 412-681-6673
Email: orders@constructiontoolservice.com

Can't find what you want? Give us a call and we can help you find it.
Details
OVERHEAD Trubolt+® Wedge anchors consist of a high-strength threaded stud body, expansion clip, coupling nut and washer. Anchor bodies are made of plated carbon steel.

The expansion clip consists of a split cylindrical ring with undercutting grooves. The exposed end of the anchor is stamped to identify anchor length. Stampings should be preserved during installation for any subsequent embedment verification.

Use carbide tipped hammer drill bits made in accordance with ANSI B212.15-1994 to install anchors. Anchors are listed by the following agencies as required by the local building code: ICC-ES and City of Los Angeles.
Additional Information
Manufacturer: Red Head
For More Information on the Seismic Wedge Anchors, [Click Here] to Link to Manufacturer Web Site
