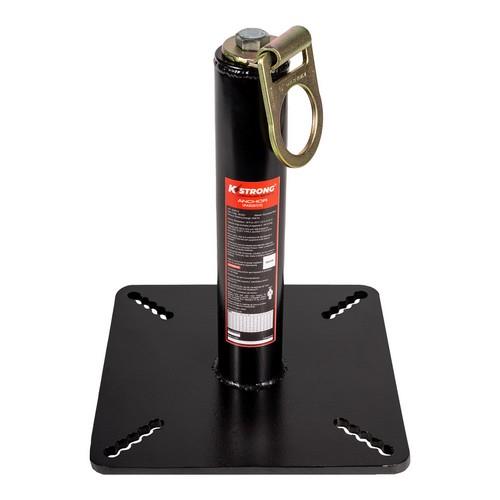

Riser Post Roof Anchor (ANSI)

UFA55207SW(12)

K-Strong

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Monday - Friday, 6:30 am to 4:30 pm
    Phone: 412-681-6673
    Email: orders@constructiontoolservice.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    • DESIGN:
      • Anchor designed to be fixed on metal I Beam to install horizontal lifeline.
      • The base have an adjustable opening to adopt to the type of Beam section.
      • Easy and quick to install with help of nut & bolt (M12).
      • Post comes with a pre-installed D-ring to make connections.
      • LENGTH (L)
      • 12 in. (304.8)
    • COMPATIBLE WITH MINIMUM FLANGE WIDTH:
      • 5.91 in. (150mm)
    • COMPATIBLE WITH MAXIMUM FLANGE WIDTH:
      • 8.66 in. (220mm)
    • MATERIAL:
      • Alloy steel
    • FINISH:
      • ED Coated black
    • SYSTEM STRENGTH:
      • 23 kN
    • WEIGHT:
      • 18.10 lbs. ± 0.44 lbs. (8.21 kgs ± 0.20 kgs).
    • RELEVANT STANDARDS:
      • Meets or Exceeds ANSI / ASSE Z359.18-2017 Type A
    Additional Information
    Manufacturer: K-Strong
    For More Information on the Riser Post Roof Anchor (ANSI), [Click Here] to Link to Manufacturer Web Site
