I-beam Stanchion Anchor (ANSI)

UFA30420

K-Strong

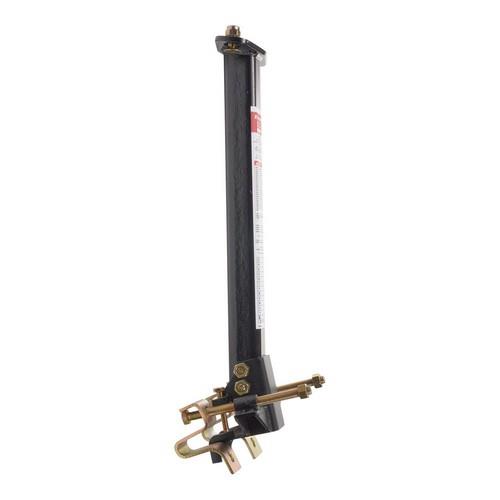

A portable and extremely easy to install Anchor Post for installation of Horizontal Line on steel construction I-Beam sections.
(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Monday - Friday, 6:30 am to 4:30 pm
    Phone: 412-681-6673
    Email: orders@constructiontoolservice.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    • DESIGN:
      • Anchor post designed to be installed on metal I-Beam
      • Can be used as a stand-alone anchor post or to form a horizontal lifeline along the length of I-Beam
      • The post comes with a unique tilted design to allow unobstructed movement of the user during the construction of roofs or metal structure
      • Span lengths are adjustable with help of intermediates
      • Compatible with I-Beam having flange width of 5.9” (150mm) to 8.66” (220mm)
    • MATERIAL:
      • High strength alloy steel
    • FINISH:
      • ED coated black
    • MINIMUM BREAKING STRENGTH:
      • 15kN
    • WEIGHT:
      • 28.22 lbs. ± 0.22 lbs. (13 kg ± 1 kg)
    • RELEVANT STANDARD:
      • Meets or Exceeds ANSI Z359.18-2017 Type A
    Additional Information
    Manufacturer: K-Strong
    For More Information on the I-beam Stanchion Anchor (ANSI), [Click Here] to Link to Manufacturer Web Site
