Parapet Clamp Anchor – Adjustable Arm (ANSI)

UFA30070

K-Strong

(click image to enlarge)
Quick Overview
Interested in this item or want more information?
Monday - Friday, 6:30 am to 4:30 pm
Phone: 412-681-6673
Email: orders@constructiontoolservice.com

Can't find what you want? Give us a call and we can help you find it.
Details
  • DESIGN:

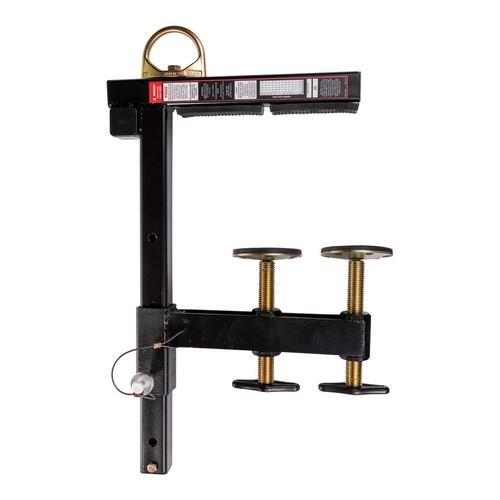

    • Parapet anchor with extended movable arm which allows installation on the parapet with moulding on outer edge.
    • Anchor suitable to be installed on the parapet of a building such that the anchor point lies at the top on the outside facade of the building.
    • Suitable to be installed on varying thickness of the parapet. Width adjustment feature provided.
    • Tightening on to the parapet by use of rubber disks.
  • INSTALLATION:
    • Min. width of the Parapet on which Installation Possible: 2.36” (60mm)
    • Max. width of the Parapet on which Installation Possible: 14.17” (360mm)
  • MATERIAL:
    • High strength alloy steel
  • FINISH:
    • Silver or Golden Yellow Galvanized
  • SYSTEM STRENGTH:
    • Greater than 25 kN21.08 lbs. ± 0.22 lbs. (9560gm ± 100gm)
  • RELEVANT STANDARDS:
    • Meets or Exceeds ANSI Z359.18-2017
  • WEIGHT:
Additional Information
Manufacturer: K-Strong
For More Information on the Parapet Clamp Anchor – Adjustable Arm (ANSI) , [Click Here] to Link to Manufacturer Web Site
