Aluminum Sliding Beam Anchor, Adjustable 3” – 6”. (ANSI)

UFA30115

K-Strong

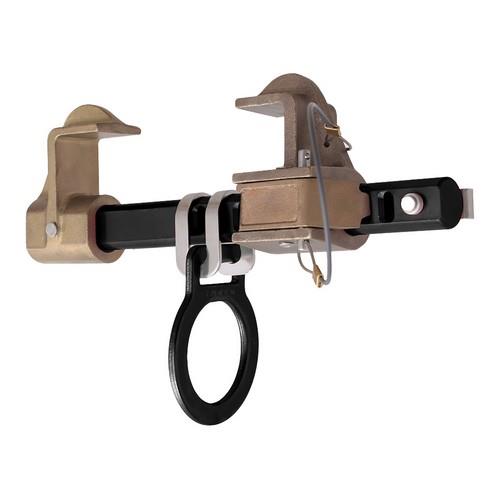

KStrong® Rolling Beam Anchor Trolley, Adjustable to fit I-beams with flange widths ranging from 3” to 6”. (ANSI)
(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Monday - Friday, 6:30 am to 4:30 pm
    Phone: 412-681-6673
    Email: orders@constructiontoolservice.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    • DESIGN:
      • Anchor capable of being installed on flange of beams.
      • Adjustment of the jaw to variable positions enables it to be installed to varying flange widths.
    • MIN FLANGE WIDTH SUITABLE FOR INSTALLATION:
      • 2.92? (74mm)
    • MAX FLANGE WIDTH SUITABLE FOR INSTALLATION:
      • 5.90? (150mm)
    • MATERIAL:
      • Aluminum Alloy & Brass
    • SYSTEM STRENGTH:
      • Greater than 5000 lbs (2268 kg)
    • RELEVANT STANDARDS:
      • Meets or Exceeds ANSI Z359.18-2017 Type A
    • WEIGHT:
      • 3.56 lbs. ± 0.22 lbs. (1615 gm. ± 100 gm).
    Additional Information
    Manufacturer: K-Strong
    For More Information on the Aluminum Sliding Beam Anchor, Adjustable 3” – 6”. (ANSI), [Click Here] to Link to Manufacturer Web Site
