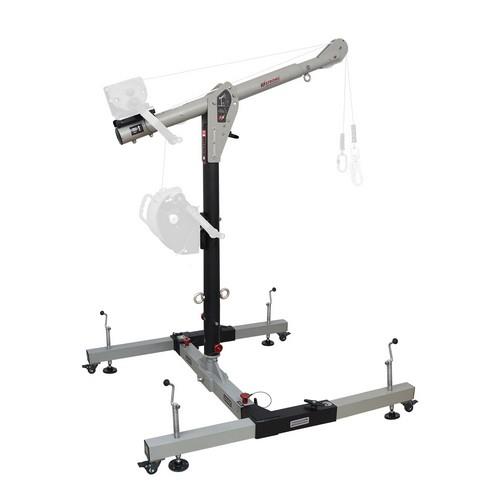

Megadavit™ H-Base Basic Kit

UFT551011BK

K-Strong

KStrong® Megadavit™ H-Base Basic Kit. Includes H-Base Frame Assembly, 54 in. Column Mast, and 3 ft. Cantilever Boom Arm with Winch Bracket
(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Monday - Friday, 6:30 am to 4:30 pm
    Phone: 412-681-6673
    Email: orders@constructiontoolservice.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    • DESIGN:
      • Upper offset mast (BOOM) is designed to be fixed upon lower mast assembly to make complete davit system for confined space entry.
      • Upper offset mast can be used with lower mast of all models of KStrong® Megadavit™ system (i.e. H-base mounting, wall/floor mounted, hitch mounting davit/concrete flush mounted davits)
      • Comes with pre-installed mounting bracket which is compatible to mount KStrong winches
      • Comes with pulleys, which are used for smooth movement of rope / wire used for lowering / lifting or rescue
      • Additional eye nut is provide to use as an anchorage point in case of rescue
    • MATERIAL:
      • Mast arm & big pulley: Aluminum alloy
      • Small pulley & eye nut: Stainless steel
      • Mounting bracket: Alloy steel
    • FINISH:
      • Mast arm & big pulley: ED coated grey
      • Small pulley & eye nut: Polished
      • Mounting bracket: ED coated black
    • SYSTEM STRENGTH:
      • Housing: Stainless steel
      • Sleeve: PTFE
    • WEIGHT:
      • 27.51 lbs. ± 0.44 lbs. (12.47kgs ± 0.20kgs)
    • RELEVANT STANDARDS:
      • Conforms to EN 795:2012 Type A
    Additional Information
    Manufacturer: K-Strong
    For More Information on the Megadavit™ H-Base Basic Kit, [Click Here] to Link to Manufacturer Web Site
