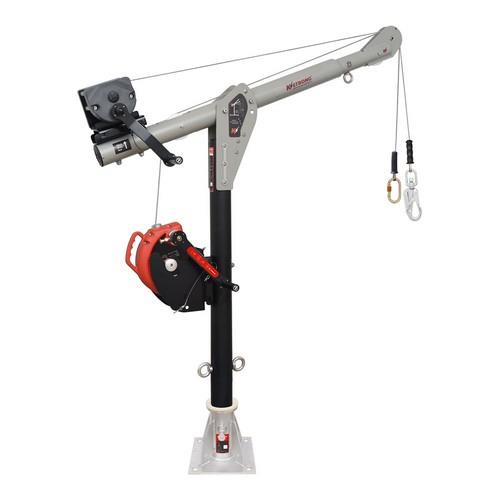

KStrong® Megadavit™ Floor Mount Deluxe Kit. Includes Floor Mount Column Mast Receiver, 54 in. Column Mast, 3 ft. Cantilever Boom Arm with Winch Bracket, 60 ft. 3-way Rescue Retrieval SRL-R with Mounting Bracket, and 60 ft. Material / Personnel Winch

(click image to enlarge)

Quick Overview

Interested in this item or want more information?
Monday - Friday, 6:30 am to 4:30 pm
Phone: 412-681-6673
Email: orders@constructiontoolservice.com

Can't find what you want? Give us a call and we can help you find it.

Details

DESIGN:

Lower mast assembly is designed to be fixed on KStrong® Megadavit™ system with H-base davit, wall/floor mounted, hitch mounting davit/concrete flush mounted davit.
Comes with pre installed mounting bracket which is compatible with retrieval blocks by using universal mounting bracket.
Upper offset mast (BOOM) support plate is designed to attach the upper offset mast with the help of locking pins & can be adjusted at 3 defined positions.
Additional eye nut is provide to use as an anchorage point in case of rescue.
Cap is provided on top of assembly to prevent ingress of water and dust particles

MATERIAL:

Lower mast: Aluminum alloy
Eye nut: Stainless steel
Mounting bracket: Alloy steel

FINISH:

Lower mast: ED coated grey
Eye nut: Polished
Mounting bracket: ED coated black

WEIGHT:

38.95 lbs ± 0.44 lbs. (17.67kgs ± 0.20kgs)

RELEVANT STANDARDS:

Conforms to EN 795:2012 Type A

Additional Information

Manufacturer: K-Strong

For More Information on the Megadavit™ Floor Mount Deluxe Kit, [Click Here] to Link to Manufacturer Web Site
