Column Caps This product's information may differ depending on the category of use. You are currently viewing details related to Column Caps. You can also view product information related to the category: Misc. Connectors for Engineered Wood

(click image to enlarge)

Quick Overview

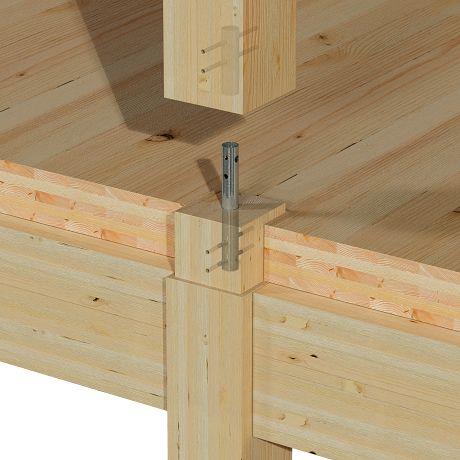

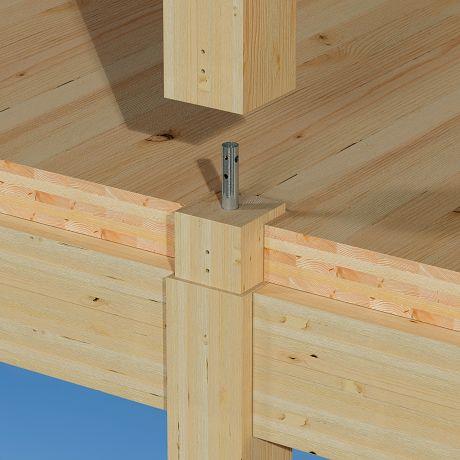

The MCT mass timber column tie connects two columns together while allowing the vertical download to be transferred by column-to-column bearing. The MCT can be used on a wide variety of column sizes and is compatible with the Simpson Strong-Tie® line of concealed beam hangers (CBH™, ACBH™, SCBH™, HSKP™), making it ideal for use in post-and-beam style construction.

Interested in this item or want more information?
Monday - Friday, 6:30 am to 4:30 pm
Phone: 412-681-6673
Email: orders@constructiontoolservice.com

Can't find what you want? Give us a call and we can help you find it.

Details

Concealed connection for architectural aesthetics and fire protection Universal design allows the same connector to be used on wide range of column sizes Simple routing for CNC fabrication of columns Integrated lifting hole with tested lifting load values Crosshair marks at centerlines of pipe to aid installation Recommended for use at column-to-foundation connections in any Seismic Design Category (See L-C-MCBDRIFT)

Additional Information

Manufacturer: Simpson Strong-Tie

For More Information on the Mass Timber Column Tie, [Click Here] to Link to Manufacturer Web Site
