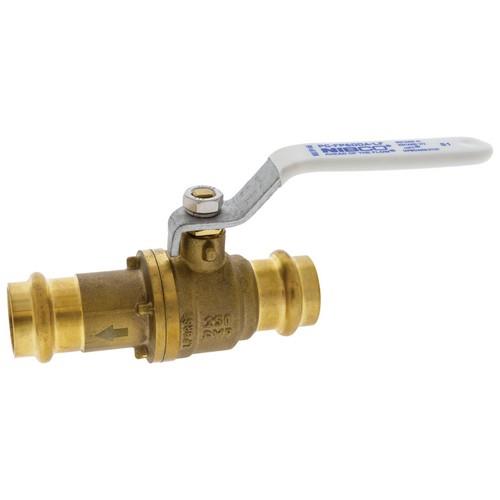

Fig no: PC-FP485-LF
The NIBCO® Press System Ball & Check valve body is manufactured from lead Free Brass alloy and is dezincification resistant (DZR). The Ball & Check valve is designed with press-to-connect end connections, and an inboard bead with EPDM O-ring for quick and easy copper to copper joinery. The ball valve is combined with an inline check valve, ideally to be used in constricted space and help reduce installation time with less extra parts and connections to make. Properly applying pressure from a press-fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux.
The NIBCO® Press System is user friendly, quick and easy to install. When properly crimped a unique "N" witness mark is clearly visible. The lead free ball valve is specifically designed for use in systems that deliver water for human consumption. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. NIBCO® Press System applies the proven performance of press technology to NIBCO valves and fittings -- the most specified flow control products in the industry. The NIBCO® Press System features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.

(click image to enlarge)

Quick Overview

Interested in this item or want more information?
Monday - Friday, 6:30 am to 4:30 pm
Phone: 412-681-6673
Email: orders@constructiontoolservice.com

Can't find what you want? Give us a call and we can help you find it.

Details

Type of Valve : Check Valve
Valve End Connection Type : Press
Features :
Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
Maximum service temperature 250°F
Copper-to-copper connections
Full port
Blowout-proof stem
Reinforced PTFE seat rings
Press x press female end connections
Multiple handle options
Press leak-detection feature
Dezincification resistant
Lead-Free
Conforms to MSS SP-145

Additional Information

Manufacturer: Nibco

For More Information on the PCFP485-LF PRESS INLINE CHCK B VLV PXP, [Click Here] to Link to Manufacturer Web Site
