Fig no: PC-480-Y-LF

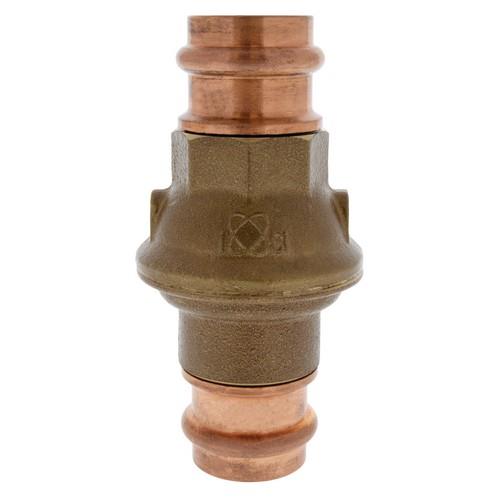

The NIBCO® lead-free bronze Ring Check® valve features press x press end connectionswith an inboard bead and EPDM O-rings for quick and easy joinery to the piping system. Simply applying pressure from a press-fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux.
The Ring Check® valve’s design has an in-line, spring assisted self-closing disc. The two-piece valve features a stainless steel stem and resilient PTFE disc. The valve is recommended for domestic hot and cold water, HVAC (condensers, chilled water, hot water heating). As an addition to the NIBCO® Press System®, the press end connections make the Ring Check quick and easy to install. he.When properly crimped a unique "N" witness mark is clearly visible. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. NIBCO® Press System® applies the proven performance of press technology to NIBCO valves and fittings -- the most specified flow control products in the industry. The NIBCO® Press System® features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains. NIBCO® Press System® valves are backed by a 5-year limited warranty.

(click image to enlarge)

Quick Overview

Interested in this item or want more information?
Monday - Friday, 6:30 am to 4:30 pm
Phone: 412-681-6673
Email: orders@constructiontoolservice.com

Can't find what you want? Give us a call and we can help you find it.

Details

Features :
Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
Maximum temperature rating 300°F at 100 psi
In-line lift type
Resilient discs
Spring actuated
Press x press female end connections
Dezincification resistant
Lead-Free
NSF/ANSI/CAN-61 and 372
Conforms to MSS SP-139

Additional Information

Manufacturer: Nibco

For More Information on the PC480W-LF PRESS RING CHK VALVE BRZ BU, [Click Here] to Link to Manufacturer Web Site
