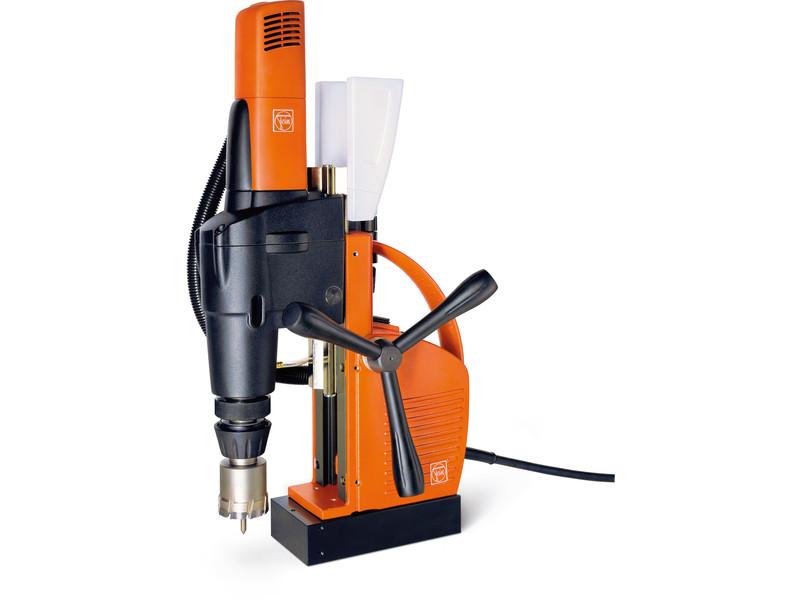

Mechanical two-speed gearbox with continuously variable electronic speed reduction, for optimum cutting speed when drilling, tapping, reaming and countersinking.
Flexible accessories use and accuracy with a combination of QuickIN and MT 3 adapters.
Adjustable double dovetail guide enables use of long drilling accessories without removing the machine from the workpiece.
Compact design and ideal power-to-weight ratio.
Reversible.
High torque, FEIN high-performance motor.
Speed-controlled tacho electronics.
Powerful magnet.
Magnet monitor system.
"Memory function" speed storage.
Integrated gravity-fed cooling lubricant supply.
Easy to use single-handed.

Interested in this item or want more information?
Monday - Friday, 6:30 am to 4:30 pm
Phone: 412-681-6673
Email: pgconnelly@constructiontoolservice.com

Can't find what you want? Give us a call and we can help you find it.

Details

Core bit max. dia.: 2-1/16 in

Core drill, max. drilling depth: 2 in

Twist drill max. dia.: 7/8 in

Tapping: 5/8 in

Max. countersinking dia.: 2 in

Reaming max. dia.: 7/8 in

Power output: 640 Watts

1st gear: 130-260 rpm

2nd gear: 260-520 rpm

Core bit holder: QuickIN

Chuck: MT 3

Stroke: 5-5/16 in

Total stroke range: 12-3/16 in

Magnetic base sizes: 7-1/16 x 3-9/16 in

Cable with plug: 13 ft

Weight according to EPTA: 31.3 lbs

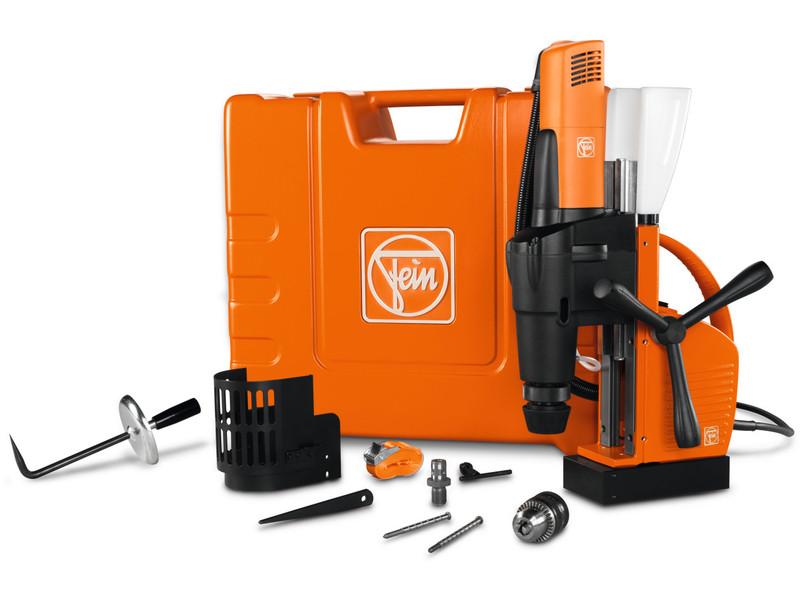

Price Includes:

1 case

1 coolant tank

1 safety strap

1 chip hook

1 1/2 in 3-jaw chuck

1 drift

1 touch guard

1 drift

1 touch guard

1 5/8 in 3-jaw chuck

Additional Information

Manufacturer: Fein Tools

For More Information on the Mag Drill unit up to 2-1/16 in, [Click Here] to Link to Manufacturer Web Site
