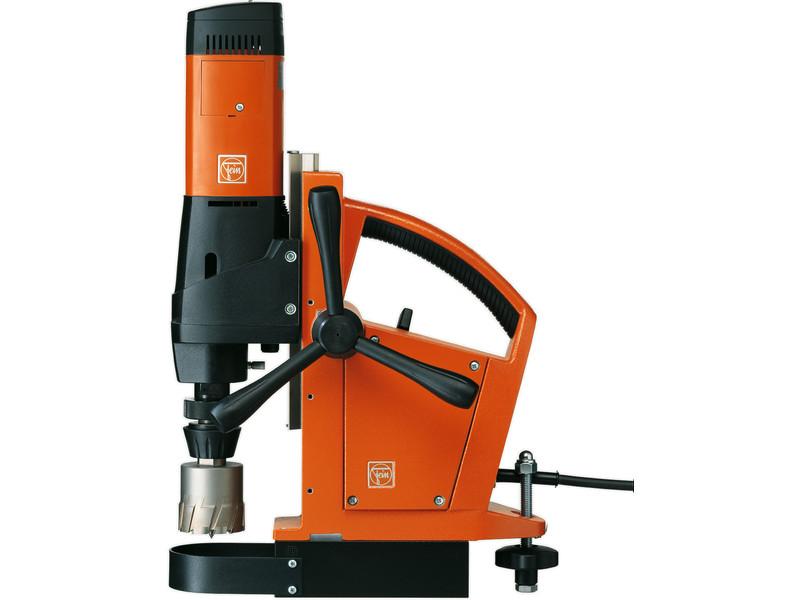

Has enough power for tough applications, such as core drilling up to 65 mm diameters or thread cuts up to M 20.
Flexible accessories use and accuracy with a combination of QuickIN and MT 3 adapters.
Adjustable double dovetail guide enables use of long drilling accessories without removing the machine from the workpiece.
Optimum power-to-weight ratio.
Mechanical two-speed gearbox.
2 electronic speed steps per gear.
Speed-controlled tacho electronics.
Powerful magnet.
Integrated cooling lubricant unit.
Electronic overload protection.
Self-start lock.
available in 230 V only

Interested in this item or want more information?
Monday - Friday, 6:30 am to 4:30 pm
Phone: 412-681-6673
Email: pgconnelly@constructiontoolservice.com

Can't find what you want? Give us a call and we can help you find it.

Details

Core bit max. dia.: 2-9/16 in

Core drill, max. drilling depth: 2 in

Twist drill max. dia.: 7/8 in

Tapping: M 20 in

Max. countersinking dia.: 2 in

Reaming max. dia.: 7/8 in

Power consumption: 1,460 Watts

Power output: 650 Watts

1st gear - slow/fast: 125/250 rpm

2nd gear - slow/fast: 255/510 rpm

Core bit holder: QuickIN

Chuck: MT 3

Stroke: 5-11/16 in

Total stroke range: 13 in

Magnetic holding force: 2,700 lbs

Magnetic base sizes: 7-5/8 x 3-5/8 in

Cable with plug: 13 ft

Weight according to EPTA: 41.9 lbs

Price Includes:

1 case

1 coolant pump

1 safety strap

1 chip hook

1 1/2 in 3-jaw chuck

1 drift

1 touch guard

1 5/8 in 3-jaw chuck

2 QuickIN Weldon adapters

4 centering pins

Additional Information

Manufacturer: Fein Tools

For More Information on the Mag Drill unit up to 2-9/16 in, [Click Here] to Link to Manufacturer Web Site
