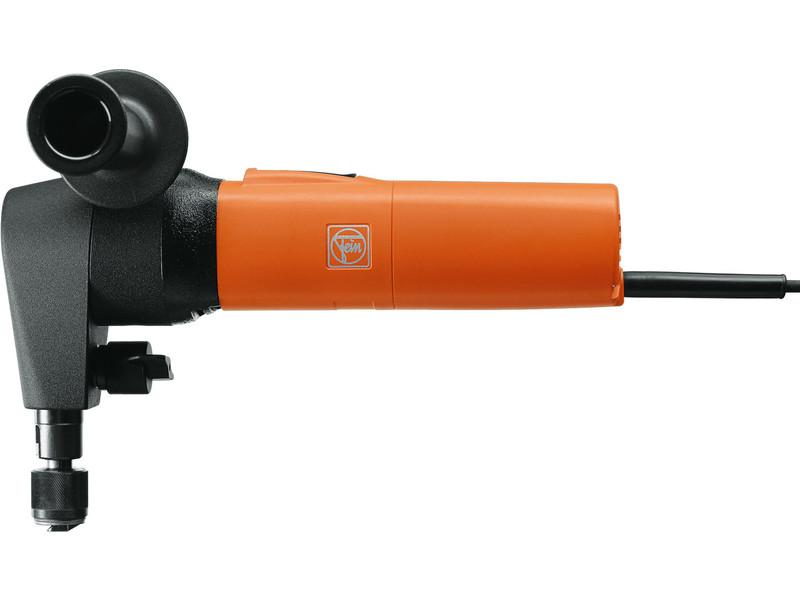

BLK 3.5 Nibbler up to 10 gauge

72323012635

Fein Tools

Powerful nibbler with unlimited curve-compatibility for grooves and cut-outs.
(click image to enlarge)
Quick Overview
  • Best suited for grooves and cut-outs in sheet metals, tool can turn on the spot.
  • Cutting direction can be adjusted in three 90° steps without the need for tools.
  • QuickIN rapid change system for rapid, tool-free punch and die changes.
  • Optimum power-to-weight ratio.
  • Long tool life, punches can be reground.
  • Motor with outstanding performance and stability.
  • Warp-free cutting of flat and bent sheet metal.
  • Optimally suited for template cuts.
  • Chip protection mesh on vent slots.
  • Handle can be rotated 180°.
  • 16 ft. cable.
  • Stainless steel up to 15 gauge.
  • Wide range of accessories.
Interested in this item or want more information?
Monday - Friday, 6:30 am to 4:30 pm
Phone: 412-681-6673
Email: pgconnelly@constructiontoolservice.com

Can't find what you want? Give us a call and we can help you find it.
Details
  • Power consumption: 1,200 Watts
  • Power output: 750 Watts
  • Strokes: 750 rpm
  • Cutting speed: 9.2 ft/min
  • Cable with plug: 16 ft
  • Weight according to EPTA: 7.7 lbs
  • Steel 56,000 lbf/in²: 10 gauge
  • Steel 84,000 lbf/in²: 13 gauge
  • Steel 112,000 lbf/in²: 15 gauge
  • Non-ferrous metals up to 35,000 lbf/in²: 10 gauge
  • Immersion Ø with die: 1-3/16 in
  • Cutting width: 9/16 in
  • Radius of smallest curve (inside/outside): 1/4 / 0 in

    • Price Includes:
  • 1 cutting head
  • 1 die (3 13 09 093 00 3)
  • 1 punch (3 13 09 097 00 2)
  • 1 handle
  • 1 wrench
    • Additional Information
    Manufacturer: Fein Tools
    For More Information on the BLK 3.5 Nibbler up to 10 gauge, [Click Here] to Link to Manufacturer Web Site
