Details

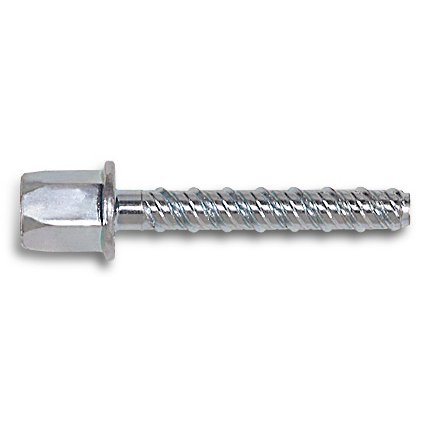

Vertigo is an all steel threaded fastening system for suspending steel threaded rod vertically overhead in pipe hanging, fire protection, electrical conduit and cable-tray applications. Vertigo are available in three versions which can be installed in a variety of base materials including steel purlins, bar joists and beams, wood frame columns and beams, as well as concrete ceilings, beams and columns.

Steel threaded rods in 1/4", 3/8" and 1/2" diameters can be vertically suspended with Vertigo. In wood and steel base materials, Vertigo is also offered in a side mount style for lateral installation of 1/4" and 3/8" diameter steel threaded rods onto joists, columns and overhead members. For all steel and wood Vertigo fasteners, a universal Vertigo Socket Driver is recommended to provide proper installation with a screw gun or hammer drill. Concrete Vertigo fasteners should be installed with the appropriate size standard drive sockets and adjustable torque, battery powered screw gun or hammer drill.

General Applications / Uses

• Hanging Pipe and Sprinkler Systems
• Suspending Conduit and Cable Tray
• Lighting Systems and Overhead Utilities
• HVAC Ductwork and Strut Channels
• Suspended Ceilings
• Mounting Security Equipment

Item #	Size / Desctiption
05865	3000 Tool SDS Driver for Concrete Vertigo Anchor
07155	1/4" Rod 1/4"-20 X 1" Tek 3 Metal Vertigo Anchor
07157	3/8" Rod 1/4"-20 X 2" Tek 3 Metal Vertigo Anchor
07159	3/8" Rod 1/4"-20 X 1-1/2" Tek 3 Metal Vertigo Anchor
07161	1/2" Rod 1/4"-20 X 1-1/2" Tek 3 Metal Vertigo Anchor
07163	1/4" Rod 1/4" X 1" Wood Vertigo Anchor
07165	3/8" Rod 1/4" X 2" Wood Vertigo Anchor
07167	3/8" Rod 1/4" X 3" Wood Vertigo Anchor
07169	3/8" Rod 1/4" X 4" Wood Vertigo Anchor
07170	3/8" Rod 1/4" X 2" Wood Vertigo Anchor
07187	Socket Driver (RED) For All Steel & Wodd Vertigo Anchors
07188	Vertigo MTL 3/8S 1/4-20X2 Nuts

Additional Information

Manufacturer: Anchors Powers DeWalt

For More Information on the Powers Vertigo, [Click Here] to Link to Manufacturer Web Site
