Light Towers - Wide Body Light Towers

LT-WB

Wacker Neuson

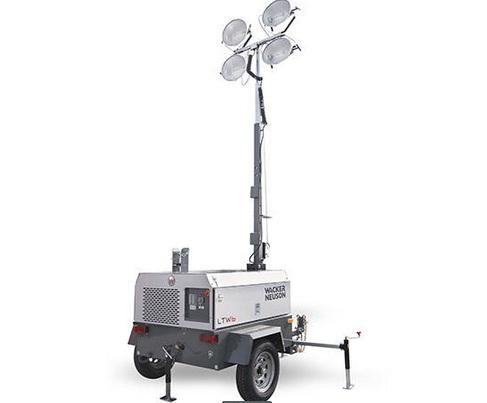

Wide body light towers offer exceptional lighting and power

The LTW series of wide-body light towers combine superior job site lighting with various power options up to 20kW in a rugged, heavy duty steel frame. Wide track width, independent torsion axles and a heavy duty tongue and hitch assembly ensure reliable off-road towing. The 30-foot adjustable tower rotates 360-degrees for optimum lighting flexibility. Equipped with large fuel tanks and simple engine controllers, these units are ideal for illuminating and powering remote and/or long run applications such as mining, security and disaster as well as general job sites.

(click image to enlarge)
Quick Overview
  • Feature:
  • Elliptical light fixtures offer excellent job site illumination that is diffused and more uniform without the harsh spotlight effect of standard light fixtures.
  • Lockable, heavy-gauge steel doors are full length providing maximum accessibility for easy service. Heavy-gauge steel skid provides full protection from ground debris.
  • Four-point jack stands for easy leveling, stability on uneven terrain and superior wind stability.
  • Mast-mounted base wince can be cranked while the operator is standing (eliminates bending) for improved ergonomics and easy operation.
  • Fully equipped highway ready trailer offers a 3-inch pintle hitch, 15-inch tires, four tie downs, DOT lighting, VIN number and chains.
Interested in this item or want more information?
Monday - Friday, 6:30 am to 4:30 pm
Phone: 412-681-6673
Email: bconnelly@constructiontoolservice.com

Can't find what you want? Give us a call and we can help you find it.
Details
Technical specifications:

 LTW 6KLTW 8KLTW 20Z1LTW 20Z3
Operating data
Illumination coverage at 5 fc (54 lux) ft²12,96012,96012,96012,960
Lamp type Metal HalideMetal HalideMetal HalideMetal Halide
Mast height ft30303030
L x W x H in177 x 75.5 x 74.5177 x 75.5 x 74.5177 x 75.5 x 74.5177 x 75.5 x 74.5
Sound level (LwA) at 23 ft (7 m) dB(A)64.367.371.271.2
Power kW682020
Frequency Hz60606060
Voltage V120/240120/240120/240120/208
Power factor cos F 1~1111
Power factor cos F 3~0.8
Voltage control %6610.5
Idle to full load %10101.51
Engine / Motor
Generator insulation (class) HHHH
RPM / speed rpm1,8001,8001,8001,800
Generator model Brushless w/capacitorBrushless w/capacitorBrushless w/AVRBrushless w/AVR
Engine / Motor type Liquid-cooled 3-cylinder diesel engineLiquid-cooled 3-cylinder diesel engineLiquid-cooled 4-cylinder diesel engineLiquid-cooled 4-cylinder diesel engine
Engine / Motor manufacturer KubotaKubotaIsuzuIsuzu
Displacement in³61.168.5133133
Operating performance hp13.115.434.334.3
at rpm rpm1,8001,8001,8001,800
Rated performance ISO 3,046 IFNISO 3,046 IFNSAE J1349 NET (w/o Fan)SAE J1349 NET (w/o Fan)
Tank capacity US gal57575757
Fuel consumption US gal/h0.680.791.581.58
Additional Information
Manufacturer: Wacker Neuson
