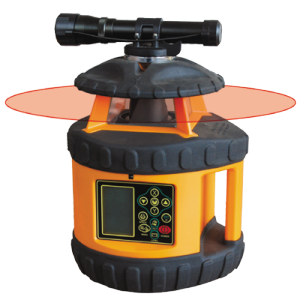

Johnson's 40-6580 Rotary Laser Level is the top of the line for outdoor construction laser levels -superior for construction contractors establishing grades, excavation, on concrete pours, siding installation and more. This rotary laser level is feature rich with electronic self-leveling, which means it uses gears instead of a pendulum to find "level". This laser level is about accuracy at 1/16"/100 ft. with a working range of 2000' in diameter when used with a laser detectorAND the laser detector is included! Still deciding?

(click image to enlarge)

Quick Overview

Leveling Method: Automatic (Electronic)

Laser Wavelength: 635nm +/-10nm (Red)

Laser Classification: Class IIIa

Maximum Power Output: <=5mW

Accuracy: +/-1/16"/100ft. (+/-1.5mm/30m)

Interior Range: N/A

Exterior Range: Up to 2000` diameter (600m) with detector

Remote Range: Up to 200` diameter (60m)

Slope

Auto-Leveling Range: +/-5 degrees

Grade Setting: Single axis +7.999% to 7.999%, Double saxis X + Y = 12.00%

Power Supply: Rechargeable NiMH battery pack, or 9V adapter (included), 4 "D" alkaline batteries (not included)

Battery Life: Approximately 50 hours with rechargeable battery pack; 100 hours with alkaline batteries

Dimensions: 8.66" x 8.66" x 11.02" (220 x 220 x 280mm)

Weight: 11lbs. (5kg)

Working Temperature: 14F to 113F (-10C to +45C)

Center Screw Thread: 5/8"-11

Scanning Modes: N/A

Rotation Speeds: 0, 300, 600, 1100 rpm

IP Protection Class: 66

Warranty: 3 Years

Interested in this item or want more information?
Monday - Friday, 6:30 am to 4:30 pm
Phone: 412-681-6673
Email: orders@constructiontoolservice.com

Can't find what you want? Give us a call and we can help you find it.

Details

Programmable dual slope function allows user to perform slope at different inclinations in both x and y axis.

Electronic beam shield to turn the laser beam off in one to three quadrants

Large ± 5° electronic self-level range. When beyond the leveling range, the laser beam will flash, rotation of the beam will stop, and an audible alarm will activate.

Height of Instrument/Tilt alarm function ensures product accuracy

Operates with remote control

LCD display with backlight illumination

Adjustable rotation speeds of 0, 300, 600 and 1100 RPM

Additional Information

Manufacturer: Johnson Level & Tool Co.

For More Information on the Electronic Self-Leveling Dual Grade Horizontal Rotary Laser, [Click Here] to Link to Manufacturer Web Site
