Manual Leveling Rotary Laser Level Kit Options

Model: 40-6502, 40-6507, 40-6512

Johnson Level & Tool Co.

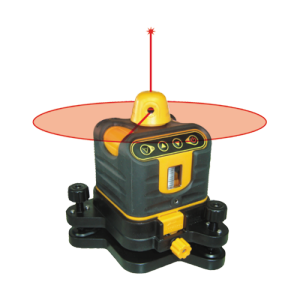

Manual Leveling Rotary Laser Level Kit Options
(click image to enlarge)
Quick Overview
  • Leveling Method: Manual (Vials)

  • Laser Wavelength: 635nm +/-10nm

  • Laser Classification: Class IIIa

  • Maximum Power Output: <=5mW

  • Accuracy: +/-1/4"/100ft. (+/-2mm/10m)

  • Interior Range: Up to 800' diameter (240m) with detector

  • Exterior Range: Up to 800' diameter (240m) with detector

  • Remote Range: N/A

  • Slope: N/A

  • Auto-Leveling Range: N/A

  • Grade Setting: N/A

  • Power Supply: 4 "AA" alkaline batteries (included)

  • Battery Life: Approximately 15 hours continuous use

  • Dimensions: 5.118" x 5.118" x 6.141" (130 x 130 x 156mm)

  • Weight: 1.653lbs. (.075kg)

  • Working Temperature: 14F to 113F (-10C to +45C)

  • Center Screw Thread: 5/8"-11

  • Scanning Modes: Big, Small, Dot

  • Rotation Speeds: 150 - 300 rpm

  • IP Protection Class: 54

  • Warranty: 3 Years
Interested in this item or want more information?
Monday - Friday, 6:30 am to 4:30 pm
Phone: 412-681-6673
Email: pgconnelly@constructiontoolservice.com

Can't find what you want? Give us a call and we can help you find it.
Details
  • Large and small scan modes achieve an accurate chalk line

  • Manual-leveling in horizontal and vertical planes

  • Simultaneous 90ยบ split beam in vertical mode

  • Scan line can be moved clockwise or counter-clockwise

  • Variable rotation speed

  • Rugged housing
    • Additional Information
    Manufacturer: Johnson Level & Tool Co.
    For More Information on the Manual Leveling Rotary Laser Level Kit Options, [Click Here] to Link to Manufacturer Web Site
