625 Series CPVC Two-Hole 90 Degree Side Mount Strap

627-210

Globe Pipe Hanger Products

(click image to enlarge)
Quick Overview

    Size Range::
    3/4" Through 2" Pipe Sizes.


    Material::
    Pre-Galvanized Carbon Steel G-90.


    Finish::
    Pre-Galvanized.


    Ordering::
    Specify Pipe Size And Model Number.


Interested in this item or want more information?
Monday - Friday, 6:30 am to 4:30 pm
Phone: 412-681-6673
Email: pgconnelly@constructiontoolservice.com

Can't find what you want? Give us a call and we can help you find it.
Details

Size Range::
3/4" Through 2" Pipe Sizes.


Material::
Pre-Galvanized Carbon Steel G-90.


Finish::
Pre-Galvanized.


Ordering::
Specify Pipe Size And Model Number.


Approvals::
Underwriter'S Laboratories Approved For The Support Of Cpvc Piping.


Function::
Design To Support Or Restraint Pipe From Either A Top Or Bottom Beam Installation. It Can Also Help Restrain An Upward Movement Of The Sprinkler Head Once Activated.

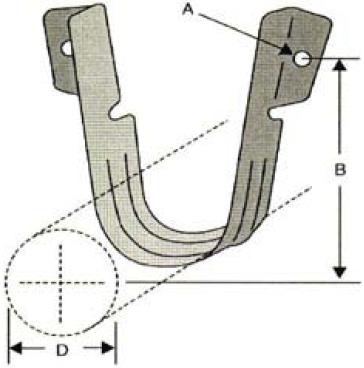

ItemPipe SizeDMaterial ThicknessMaterial SizeAB
625 - 206 3/4 inches 1.050 inches 20 gauge 1 1/8 inches 7/32 inches 1 1/2 inches
625 - 210 1 inches 1.313 inches 20 gauge 1 1/8 inches 7/32 inches 1 1/2 inches
625 - 212 1 1/4 inches 1.660 inches 20 gauge 1 1/8 inches 7/32 inches 1 3/4 inches
625 - 214 1 1/2 inches 1.900 inches 20 gauge 1 1/8 inches 7/32 inches 1 7/8 inches
625 - 220 2 inches 2.375 inches 20 gauge 1 1/8 inches 7/32 inches 2 inches
Additional Information
Manufacturer: Globe Pipe Hanger Products
For More Information on the 625 Series CPVC Two-Hole 90 Degree Side Mount Strap, [Click Here] to Link to Manufacturer Web Site
