560 Series Double Bolt Pipe Clamp

560-SDBPC

Globe Pipe Hanger Products

Recommended for the suspension of insulated pipe lines normally used with weldless eye nut.
(click image to enlarge)
Quick Overview

  • Size Range : 3/4" Through 36" Pipe Sizes.
  • Material : Carbon Steel
  • Finish : Black.
  • Ordering : Specify Finish; Model Number And Pipe Size.
  • Function : Recommended For The Suspension Of Insulated Pipe Lines Normally Used With Weldless Eye Nut.
Interested in this item or want more information?
Monday - Friday, 6:30 am to 4:30 pm
Phone: 412-681-6673
Email: orders@constructiontoolservice.com

Can't find what you want? Give us a call and we can help you find it.
Details

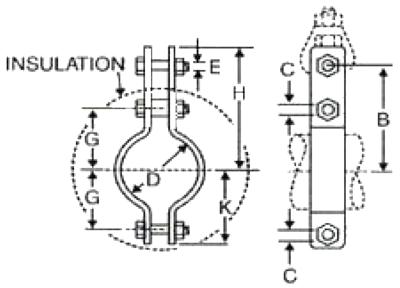

ItemPipe SizeB CDMax. Recommended Load (At 650°F)Max. Recommended Load (At 750°F)
560 - 106 3/4 inches 2 3/4 inches 3/8 inches 1 inches 950 lbs 850 lbs
560 - 110 1 inches 2 7/8 inches 3/8 inches 1 1/4 inches 950 lbs 850 lbs
560 - 112 1 1/4 inches 3 inches 3/8 inches 1 5/8 inches 950 lbs 850 lbs
560 - 114 1 1/2 inches 4 5/8 inches 1/2 inches 2 inches 1545 lbs 1380 lbs
560 - 120 2 inches 4 3/4 inches 1/2 inches 2 3/8 inches 1545 lbs 1380 lbs
560 - 124 2 1/2 inches 5 inches 1/2 inches 2 7/8 inches 1545 lbs 1380 lbs
560 - 130 3 inches 5 3/8 inches 1/2 inches 3 1/2 inches 1545 lbs 1380 lbs
560 - 134 3 1/2 inches 5 5/8 inches 1/2 inches 4 inches 1545 lbs 1380 lbs
560 - 140 4 inches 7 inches 5/8 inches 4 1/2 inches 2500 lbs 2230 lbs
560 - 150 5 inches 7 5/8 inches 5/8 inches 5 1/2 inches 2500 lbs 2230 lbs
560 - 160 6 inches 8 5/8 inches 3/4 inches 6 5/8 inches 2865 lbs 2555 lbs
560 - 180 8 inches 9 7/8 inches 3/4 inches 8 5/8 inches 2865 lbs 2555 lbs
560 - 1100 10 inches 11 1/8 inches 7/8 inches 10 3/4 inches 3240 lbs 2890 lbs
560 - 1120 12 inches 12 1/2 inches 7/8 inches 12 3/4 inches 3240 lbs 2890 lbs
560 - 1140 14 inches 13 1/2 inches 7/8 inches 14 inches 4300 lbs 3835 lbs
560 - 1160 16 inches 14 1/4 inches 7/8 inches 16 inches 4300 lbs 3835 lbs
560 - 1180 18 inches 15 1/2 inches 1 inches 18 inches 4300 lbs 3835 lbs
560 - 1200 20 inches 16 1/2 inches 1 1/4 inches 20 inches 5490 lbs 4900 lbs
560 - 1240 24 inches 18 3/4 inches 1 1/4 inches 24 inches 4500 lbs 4015 lbs
560 - 1300 30 inches 23 inches 1 3/8 inches 30 inches 8000 lbs N/A
560 - 1360 36 inches 28 7/8 inches 1 3/8 inches 36 inches 8000 lbs N/A
Additional Information
Manufacturer: Globe Pipe Hanger Products
For More Information on the 560 Series Double Bolt Pipe Clamp, [Click Here] to Link to Manufacturer Web Site
