10'' Job Site Table Saw with Site-Pro Modular Guarding System

DW744X

DeWalt

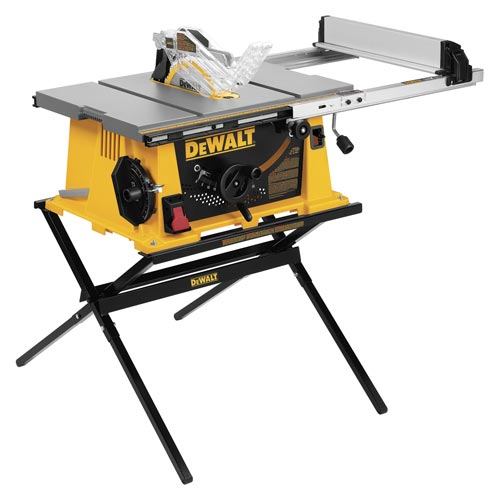

DeWalt DW744X 10'' Job Site Table Saw with Site-Pro Modular Guarding System
(click image to enlarge)
Quick Overview
  • Amps 15Amps
  • No Load Speed 3,650rpm
  • Blade Diameter 10''
  • Arbor Size 5/8''
  • Dust Port Diameter 2-1/4''
  • Depth of Cut at 90° 3-1/8''
  • Depth of Cut at 45° 2-1/4''
  • Max Rip To Right Of Blade 24-1/2''
  • Max Rip To Left Of Blade 15-1/2''
  • Max Width of Dado 13/16''
  • Tool Weight 57lbs
  • Shipping Weight 98lbs
Interested in this item or want more information?
Monday - Friday, 6:30 am to 4:30 pm
Phone: 412-681-6673
Email: pgconnelly@constructiontoolservice.com

Can't find what you want? Give us a call and we can help you find it.
Details
Site-Pro Modular Guarding System allows for tool free adjustments of the guarding components appropriate for each application. Exclusive, telescoping fence delivers 24-1/2'' rip capacity without sacrificing portability. Rack and pinion fence rails make fence adjustments fast, smooth and accurate. Telescoping fence rails retract to create a small, portable package. On Board Storage provides easy access to the Site-Pro Guarding components and push stick when not in use. Features a 15.0 Amp high-torque motor with the power to cut pressure-treated lumber and hardwoods. Electronic feedback maintains blade speed during difficult applications. Soft start extends gear and motor life by reducing start up torque. Features a heavy-duty internal motor mechanism which stabilizes the arbor, keeping vibration to a minimum. 2'' Dust Collection Port easily connects to a vacuum for efficient dust extraction. 3-1/8'' depth of cut at 90° and 2-1/4'' at 45°. 26-1/2'' X 19-1/4'' table surface provides superior material support.
Additional Information
Manufacturer: DeWalt
