20” Adjustable Pipe Roll Support

6202000PL

Caddy

(click image to enlarge)
Quick Overview
    • Size Range: 2-1/2” thru 30”
    • Surface Finish: Black
    • Support pipe from a substructure or structural member where longitudinal movement may occur due to expansion or contraction and where vertical adjustment of up to 6” may be necessar
Interested in this item or want more information?
Monday - Friday, 6:30 am to 4:30 pm
Phone: 412-681-6673
Email: orders@constructiontoolservice.com

Can't find what you want? Give us a call and we can help you find it.
Details

Specifications :-

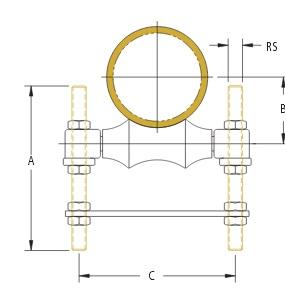

Part no.Pipe SizeRSABCMax. Rec. Load Lbs.
6200250PL2-1/2”1/2”12”1-7/8”4-7/8”660
6200300PL3”1/2”12”2-1/4”5-5/8”700
6200350PL3-1/2”1/2”12”2-5/8”6-1/8”750
6200400PL4”5/8”12”2-7/8”6-11/16”750
6200500PL5”5/8”12”3-1/2”7-15/16”750
6200600PL6”3/4”12”4”9-9/16”1070
6200800PL8”7/8”12”5-1/4”12”1350
6201000PL10”7/8”12”6-5/16”14”1730
6201200PL12”7/8”12”7-7/16”15-3/4”2400
6201400PL14”1”12”8-3/8”17-5/8”3130
6201600PL16”1”18”9-7/16”19-5/16”3970
6201800PL18”1”18”10-7/16”21-5/8”4200
6202000PL20”1-1/4”18”11-1/2”24-1/8”4550
6202400PL24”1-1/2”24”13-15/16”28-3/8”6060
6203000PL30”1-1/2”24”17-1/4”35-3/8”7290
Additional Information
Manufacturer: Caddy
For More Information on the 20” Adjustable Pipe Roll Support, [Click Here] to Link to Manufacturer Web Site
