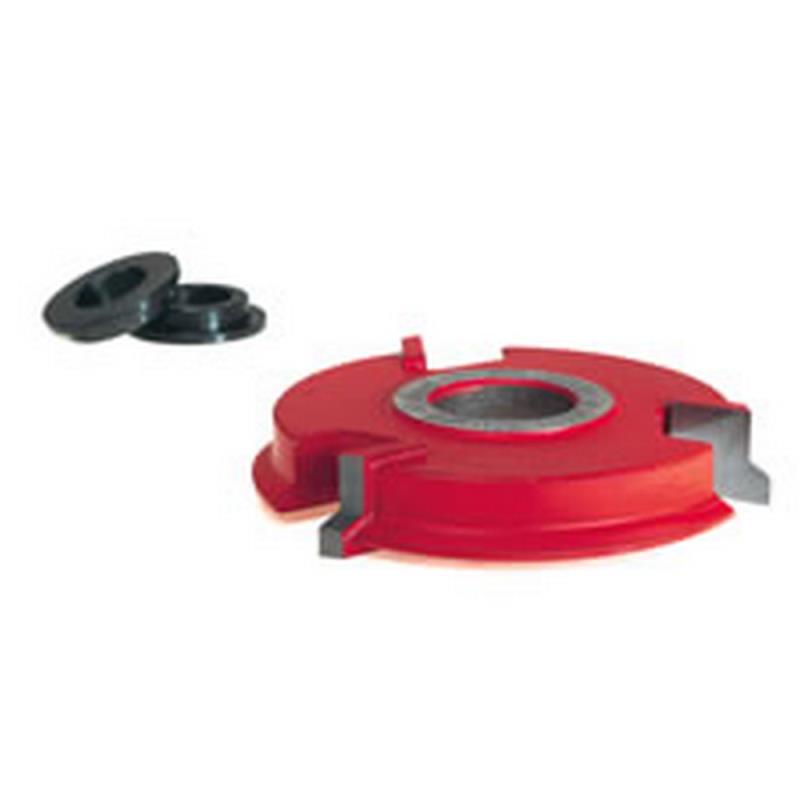

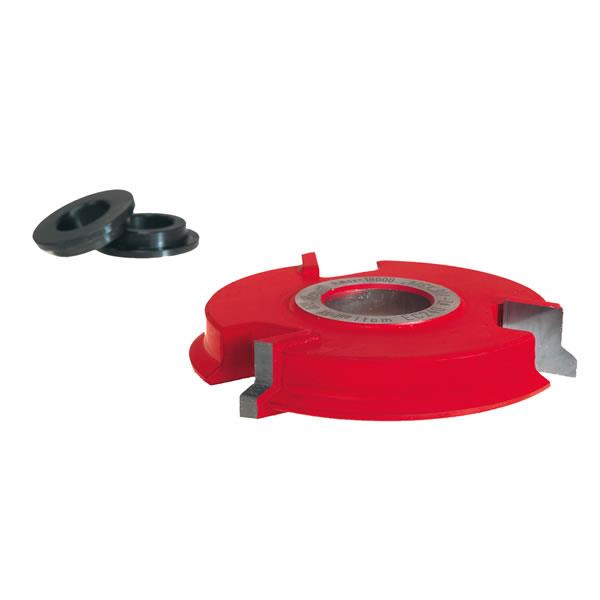

2-7/8" (Dia.) Fixed Wing Drawer Lock Cutter with 3/4" bore

EC-240

Freud

Drawer Lock Cutters
(click image to enlarge)
Quick Overview

    Designed for 1/2" and 3/4" thick stock, these cutters provide a strong joint for drawer fronts. Run the drawer face flat on the shaper table, and the drawer sides vertically on the fence. Once correct setup is attained for drawer front, height of cutter does not need to be changed to run drawer sides.

    • TiCo™ Hi-Density Carbide
    • Anti-Kickback Design
    • Thick micrograin carbide tips.
    • Shear Angle
    • Covered by Freud's limited lifetime warranty
Interested in this item or want more information?
Monday - Friday, 6:30 am to 4:30 pm
Phone: 412-681-6673
Email: pgconnelly@constructiontoolservice.com

Can't find what you want? Give us a call and we can help you find it.
Details
  • Ideal For: To provide a strong joint for drawer fronts.
  • Machine Use: Shaper
  • Materials: Wood, Wood Composites
  • Overall Diameter 2-7/8"
  • Carbide Height 33/64"
  • Bore Diameter 3/4"
  • Cut Depth 1/8"
  • Minor Height 5/32"
Additional Information
Manufacturer: Freud
