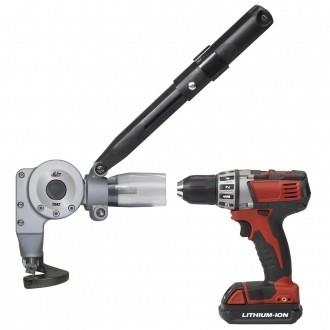

Step up to heavy-duty metal-cutting performance with a 16-gauge (1.52 mm) capacity TurboShear from Malco Products. The Model TSA2 TurboShear Drill Attachment makes a power drill a powerful metal-cutting shear, instantly! Cutting applications in construction mild grade steel. Clearance between the shear’s cutting inserts may be adjusted for optimal performance within a range of 16 to 26-gauge (1.52 to 0.46 mm) mild steel. A helical (spiral) shaped foot permits easy left, right or straight cutting action. And a 5-position 0 to 90 degree (0, 22.5, 45, 67.5 and 90) adjustable head angle makes this TurboShear exceptionally maneuverable for cuts through profiles and into tight spaces.

(click image to enlarge)

Quick Overview

Comes completely assembled and ready for service.
Adjustable cutting clearance. Clearance between the shear’s cutting inserts may be adjusted for optimal performance within a range of 16 to 26-gauge (1.52 to 0.46 mm) mild grade steel.
Cuts any pattern. A helical (spiral) shaped foot permits easy left, right or straight cutting action.
Adjustable head. A 5-position 0 to 90 degrees (0, 22.5, 45, 67.5 and 90) adjustable head angle makes these TurboShears exceptionally maneuverable for cuts through profiles and into tight spaces.
Long-life, 4-sided, cutting inserts. Inserts are designed to be periodically rotated together to maximize service life before replacement. Cutting inserts are accessible without disassembly of the shear head casings and are easily replaced on the job.

Interested in this item or want more information?
Monday - Friday, 6:30 am to 4:30 pm
Phone: 412-681-6673
Email: orders@constructiontoolservice.com

Can't find what you want? Give us a call and we can help you find it.

Details

Catalog #	Description	Drill Requirements	Cutting Capacity	Head Angle Adjustment	Net Weight
TSA2	16-Gauge Metal-Cutting TurboShear Drill Attachment	Minimum 14.4 Volt Cordless/Maximum 7 Amp A/C	16-Gauge (152 mm) Mild Steel	0.225, 45, 67.5, 90 Degrees	4.53 lbs. (2.05 kg)
Replacement Parts
TSDC	Drill Clamp (fits all TurboShear Drill Attachment models)				8 oz. (227 g)
TSCG	Heavy-Duty Chuck Guard				.06 lbs. (0.03 kg)
TSA1RB	Replacement Cut Inserts				4 oz. (113.4 g)

Additional Information

Manufacturer: Malco

For More Information on the 16 Ga. Metal-Cutting TS Drill Attachment C, [Click Here] to Link to Manufacturer Web Site
