One piece arbor and hole saw combination eliminates the need for separate arbor attachments. 4/6 variable pitch teeth milled into high speed steel edge and micro-welded to body.

(click image to enlarge)

Quick Overview

null

Interested in this item or want more information?
Monday - Friday, 6:30 am to 4:30 pm
Phone: 412-681-6673
Email: orders@constructiontoolservice.com

Can't find what you want? Give us a call and we can help you find it.

Details

Catalog #	Description
HSB	Hole Saw 1/4” (6.4 mm) Pilot Drill Bit Replacements
HSX	13” (330 mm) Arbor Extension fits Malco VENT SAW® and Hole-in One Hole Saws

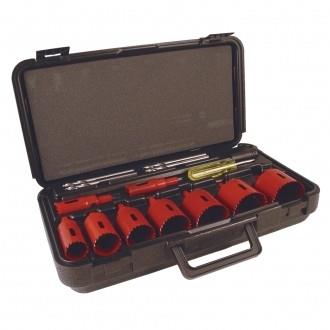

HSK	Maintenance Hole in One Kit. One each of the following sizes: 2-1/2, 2-1/4, 2, 1-3/4, 1-1/2, 1-3/8, 1-1/8, 7/8 and 3/4”. (63.5, 57.2, 50.8, 44.5, 38.1, 34.9, 28.6, 22.2, 19.1 mm) Plus (4) HSB drills, (1) HSX extension arbor shank and (1) stubby driver.

Product Information

Recommended Clearances

Recommeneded (RPM) Cutting Speed

Catalog Number	Diameter Inches	Diameter Millimeters
H30	1 7/8"	47.6
H32	2"	50.8
H38	2 3/8"	60.3
H44	2 3/4"	69.9

Pipe Tap Size	Entr. Size	Tubing Coupling	Entr. Size	Coupling
-	-	-	-	-
-	1 1/2	-	-	1 1/2
-	-	-	-	-
-	-	-	2 1/2	-

Mild Steel	Tool and Stainless Steel	Cast Iron	Brass	Alum.
180	90	120	240	270
170	85	115	230	255
140	70	95	190	220
125	60	80	160	185

Additional Information

Manufacturer: Malco

For More Information on the Hole in One Saw, [Click Here] to Link to Manufacturer Web Site
