Details

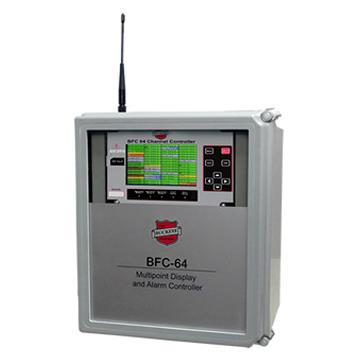

16, 32, 48, 64 channel display modes accept inputs from many sensor types and signal ranges. Ethernet with Modbus® TCP Master / Slave and web server for configuration and monitoring convenience. RS-485 serial ports allow simultaneous Modbus® Master / Slave operation. Two standard ports and two isolated ports. Wireless Modbus® interface available. Three independent alarm levels per channel. “Sparing Relay Acknowledge” feature allows silencing of external audible devices during alarm conditions. QVGA color LCD displays monitored data as trends, bar graphs and engineering units. Readouts change colors to indicate alarms. Five standard SPDT 5 amp alarm relays for Horn, and Fault, plus three programmable alarm relays. Options such as catalytic bead / IR sensor inputs, 4 – 20 mA inputs, 4 – 20 mA outputs, discrete and programmable alarm relays are supported via an I2C expansion bus. Cal Mode offers push button zero / span calibration functionality for direct sensor input applications. Authorization mode allows locking of critical configuration settings. Data logger onto SD card allows recording of minimum and maximum values for one year. Power supply options for 150, 600 or 1200 Watts. Magnetic keypad standard for non-intrusive operation in potentially hazardous locations. Enclosures include wall mount NEMA 4X, Non-Metallic, 316 S.S. NEMA 7 and Rack / Panel mount.

Additional Information

Manufacturer: Buckeye Fire Equipment
