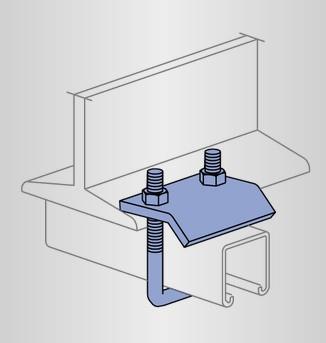

P2785-EG - Beam Clamp

P2785-EG

Unistrut

Standard Dimensions (Unless Shown Otherwise on Drawing):

  • Hole Diameter: 9/16" (14mm)
  • Hole Spacing (From End): 13/16" (21mm)
  • Hole Spacing (On-Center): 1 7/8" (48mm)
  • Width: 1 5/8" (41mm)
  • Thickness:
  • 1/4" (6.4mm) with steel meeting or exceeding ASTM A1011 SS GR 33, or
  • 0.220" (5.6mm) with steel meeting or exceeding ASTM A1011 HSLAS GR 45

Note:

  • When used for mechanical supports, load capacities of brackets and fittings should be in compliance with the American Standard Code for Pressure Piping.
(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Monday - Friday, 6:30 am to 4:30 pm
    Phone: 412-681-6673
    Email: pgconnelly@constructiontoolservice.com

    Can't find what you want? Give us a call and we can help you find it.
    Additional Information
    Manufacturer: Unistrut
    For More Information on the P2785-EG - Beam Clamp, [Click Here] to Link to Manufacturer Web Site
